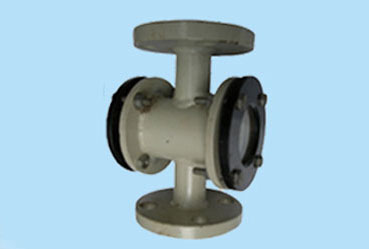

Double Window Side Glass


Double Window Side Glass

Model No. : MI - 11


The "Mayur Instruments" make Tubular Level Indicator (Side Mounted). It is a reliable device for direct reading the level of liquid. It is a simplest form of level indicator. These level indicators find wide application for level measurement in process tanks, batching tanks / storage / overhead etc.


"Mayur Instruments" make Window Type Sight Flow indicator suitable for transparent slightly opaque solution and it may be used for gases m2 & High Pressure / High Temperature



Specification

  • Material of Construction - M.S./S.S. 304/S.S. 316/P.P.
  • Packing - Teflon, Silicon, Asbestos CF
  • Test Press - 40 Kg/cm2

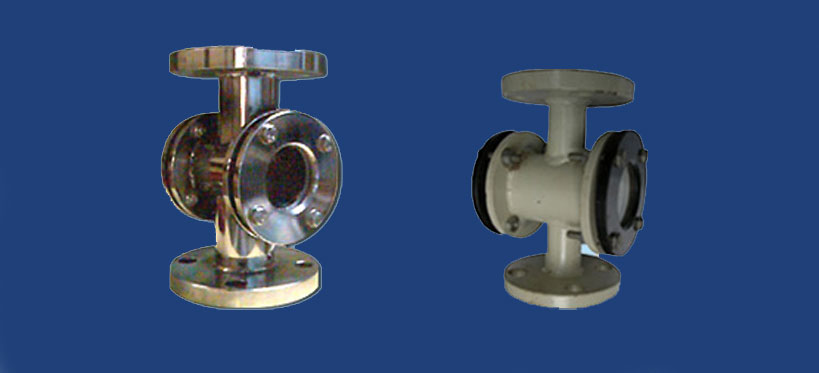

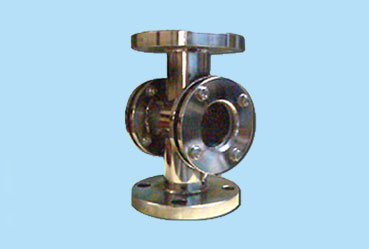

Double Window Side Glass


Double Window Side Glass

Model No. : MI - 11


Sight Glasses are used to view the flow, colour or presence or leaks of water, liquids and slurries. The sight flow indicator is used in industries for the requi- rement of various applications to inspect the process fluid and visual indication of the flow and contents in pipes.


Principle


The Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window Sight Glass (Sight Flow Indicator) it Contains Two Toughened Glasses Mounted opposite to each other. The Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature. The Double Window Type Sight Glass (Sight Flow Indicator) is very easy to replace glass without dismantling the whole Sight Glass assembly from process line.



Specification

  • Maximum Operating Pressure - 52 Bar
  • Maximum Operating Temperature - 150°C with Sodalime Glass & 280°C with Borosilicate Glass
  • Body - Carbon Steel / AISI 304 SS / AISI 316 SS etc.
  • Cover Plate - Carbon Steel / AISI 304 SS / AISI 316 SS etc.
  • Glass - Tempered Borosilicate
  • Flapper - Carbon Steel / AISI 304 SS / AISI 316 SS etc.
  • Flapper Rod - Carbon Steel / AISI 304 SS / AISI 316 SS etc.
  • Sealing - CAF / PTFE
