U Tube Manometers

Acrylic U Tube Manometers

Model No. : MI - 013(A)


The Mayur instruments make U tube Manometer. It is the simplest form of manometer and is use for the purpose of measuring the pressure,vacuum, differential pressure and flow measurement in the plant, U Tube Manometers are also used for the experimental work in laboratories where certain accuracy is required.

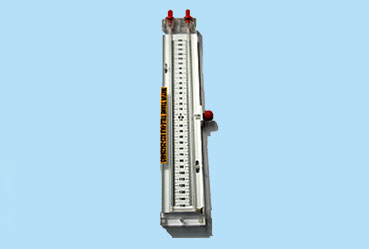

Acrylic U Tube Manometers

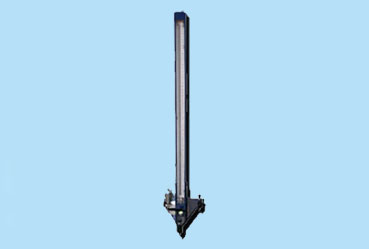

Single Limb Manometer

Model No. : MI - 012


The Mayur Instruments Single Limb Well Type Manometer is used for direct reading for the precision measurement of pressure, vacuum, differential pressure, flow and liquid level measurement device ideal for various process applications. These Manometers are general purpose, direct reading and relatively simple instruments. The well type single limb manometer is accurate & reliable as well as highly versatile for many applications. All scales are graduated to correct for the drop in the well level.


Principle


The Single Limb Well Type Manometer, in general consisting of Stainless steel fittings, Borosil Glass Limbs mounted on a metallic frame, provided with White Acrylic Scale with zero at the bottom. The Manometer we provide will be protected with Transparent Front Cover and External Zero Adjustment Knob. The Single Limb Manometer has Fill Plug, Drain Plug, Leveling Screw, Spirit Level, and Adjustment Knob arrangements. These arrangements assure proper and accurate working of the Single Limb Manometer. For convenient working we provide Nozzle Type and Screwed Type process connection that is available in 1/8” BSP / NPT, 1/4” BSP / NPT. Our Single Limb Manometer ensures efficient working with Wall as well as Table (Stand) Mounting. Our range of stand mounted model in Manometer includes 3 legged Stand, having 3 Nos leveling screw and attached Round Type Bull Eye Spirit Level.



Specifications

  • Mounting - Wall / Flush / Base Mounting
  • Filling - Mercury / Water
  • Ranges - 60, 75, 100, 125, 150, 200, 250 cm
  • Resolutios - 1mm
  • Accuracy - ±0.2% ± 0.5mm
  • Wetted Parts - SS 304, SS 316, CS, PP, PTFE
  • Floats - SS 316, PTFE, PVC, PP
  • Packing - Neoprene, PTFE, Silicon
  • Scale - PVC, Aluminum, SS Engraved
  • Scale Lenght - 175 to 200 mm Approx.
  • Rangeability - 10 : 1
  • End Connection - Threaded Male / Female
  • Max. Temp. - Up to 250°C

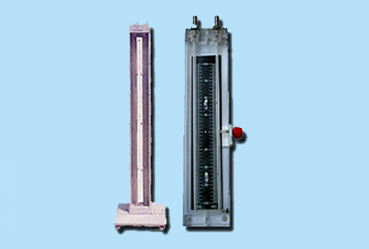

Single Limb Manometers


U - Tube Manometer

Model No. : MI - 013


The Mayur Instruments U - Tube Manometer is the basic and mostly used style of manometer. The U - Tube manometer is a versatile, economical instrument for the measurement of pressure, vacuums or differential pressures. Pressure measurements are accomplished by balancing a vertical head of indicating fluid with the pressure to be measured. As there is no cams, gears or levers to operate in the manometer, the readings obtained are always accurate.


Principle


The U Tube Manometer, have “U” shaped tube, half filled with liquid (Water / Mercury / SP Gr. 0.81). When both the tubes are open, the liquid is at the same height in each leg (Tube / Limbs). When positive pressure is applied to one leg the liquid is forced down in that leg and up in the other. The difference in the height, which is the sum of the reading above and below zero, tells you the pressure. When vacuum is applied to one leg, the liquid rises in that leg and falls in the other. The difference in the height indicates the amount of vacuum. The U Tube Manometer, consisting of two Glass Limbs. Stainless Steel / Brass Connecting fittings mounted on a metallic frame, provided with White Acrylic Scale with zero at the center. The U Tube Liquid Column Manometer we provide is used to determine Velocity and Static Pressure, Leakage, Fan Efficiency and Gas Pressure. The Manometer will be protected with transparent acrylic front cover fix with Aluminum frame and external zero adjustment Knob / Drain Plug / Fill Plug will Be Provided.



Specifications

  • Type - U - Type
  • Ranges - 120-0-120 / 150-0-150 / 200-0-200 / 250-0-250 / 300-0-300mm
  • Pressure Rating - 250 PSIG
  • Mounting - Wall / Flush / Base Mounting
  • Indicating Tube - Glass
  • Packing - Neoprene
  • Body - Aluminum
  • Wetted Parts - Cast Iron / 316 SS / PVC
  • Scale Finish - Satin Aluminum, Black Graduations
  • Finish - Aluminum Body, Black crackle enamel head
  • Filling - Mercury / Water
  • Resolution - 1mm
  • Accuracy - ±0.2% ± 0.5mm
  • Max. Temp. - Up to 250°C
Single Limb Manometers
